What a mouth full ;=)) Global Self-consistent, Hierarchical, High-resolution Shoreline! But what a beautiful database ...

I was not sure this had much to do with FlightGear, but do note there is a gshhs module in TerraGear utilities, but not so sure it is used in the creation of the current 1.0.1 FlightGear scenery - it has some problems, see next page, but ...

What a fantastic Global Self-consistent, Hierarchical, High-resolution Shoreline database, maintained by ... I had first come across this back in about 2004, and still have copies of this version 1.3 dataset. It has now augmented to version 1.6 ... and comes with C sources to extract the data.

This image is from their web site ...


The GSHHS data and software are available via anonymous ftp.

12/20/2007 06:46AM          9,190 README.gshhs
04/02/2007 12:00AM     80,787,138
12/20/2007 06:45AM    111,033,828
04/02/2007 12:00AM         14,135
12/20/2007 06:45AM         14,863

I downloaded the dataset, containing -

Directory of C:\Projects\gshhs\data_1.6
20/12/2007  06:41           163,448 gshhs_c.b
20/12/2007  06:41        88,762,768 gshhs_f.b
20/12/2007  06:41        20,165,024 gshhs_h.b
20/12/2007  06:41         4,933,880 gshhs_i.b
20/12/2007  06:41         1,066,488 gshhs_l.b
20/12/2007  06:41            71,448 wdb_borders_c.b
20/12/2007  06:41         6,035,296 wdb_borders_f.b
20/12/2007  06:41         1,030,056 wdb_borders_h.b
20/12/2007  06:41           400,696 wdb_borders_i.b
20/12/2007  06:41           145,952 wdb_borders_l.b
20/12/2007  06:41         1,329,616 wdb_rivers_c.b
20/12/2007  06:41        21,753,168 wdb_rivers_f.b
20/12/2007  06:41         5,775,128 wdb_rivers_h.b
20/12/2007  06:41         2,697,608 wdb_rivers_i.b
20/12/2007  06:41         1,543,640 wdb_rivers_l.b
              15 File(s)    155,874,216 bytes

And then downloaded the, containing -

Zip file:
  Length   Size  Ratio    Date     Time   Name
  ------   ----- -----    ----     ----   ----
    4317    1993  54%  28/08/2007  08:40  gshhs\gshhs.c
    2869    1402  52%  28/08/2007  08:40  gshhs\gshhs.h
   11501    3659  69%  27/08/2007  15:00  gshhs\gshhs_dp.c
    7494    2739  64%  05/10/2007  08:18  gshhs\gshhstograss.c
    1586     525  67%  26/11/2007  09:37  gshhs\makefile
    9413    3675  61%  28/08/2007  08:32  gshhs\README.gshhs
 ------- -------  ---                     -------
   37180   13993  63%                           6

I used MS Visual C++ 2005 Express edition (MSVC8) to compile the gshhs.c source. It is ALWAYS a pleasure when it compiles cleanly, first off. MSVC8 did issue some 'warnings', but these were easily dispensed with ...

As the readme.gshhs points out, the datasets available are :-

gshhs_f.b  Full resolution data
gshhs_h.b  High resolution data
gshhs_i.b  Intermediate resolution data
gshhs_l.b  Low resolution data
gshhs_c.b  Crude resolution data

Of course, after compiling, and testing the simple supplied ASCII output module, I used the 'technology' contained therein to create my WIN32 version, with additional features I wanted to try. One of them was to output the results into a Windows bitmap ... it seems to me it is always BETTER to visually 'see' the information extracted.

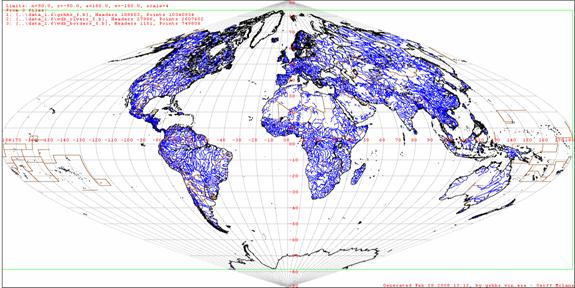

This is the result of combining gshhs_f.b, wdb_rivers_f.b, and wdb_borders_f.b, painting the coastline in black, the rivers in blue, and borders in brown ... using a projection based on a simple ilon = lon * cos(lat) ... obviously better viewed in full size - this full size version also has FlightGear data information added, so is not 'just' GSHHS ...



Of course, the detail is seen MUCH better if maximum and minimum latitudes and longitudes are used, and the results scaled up -


The above is with the following input file passed to gshhs_win ...

-minlat=49        ; minimum latitude
-maxlat=55       ; maximum latitude
-minlon=-1       ; minimum longitude
-maxlon=10      ; maximum longitude
-l          ; do NOT output ASCII points
-scale=80         ; scale up 80 times
-p-       ; mercator OFF
; database files

The source of this application is contained in this ZIP, and a WIN32 executable in this ZIP ... see downloads below for sizes and MD5 context. Although this source uses 'file mapping' as available in WIN32, it could fairly easily be converted to run in unix/linux or other OS platforms.


BglView2 - My use of GSHHS

I long time back I had created an application to extract scenery information from Microsoft Flight Simulator BGL scenery files, to be able to 'see' what they contained. That produced an 'interesting' display - example :-


But OH, how this is greatly enhanced by adding the GSHHS data in the background ...


Adding the coastline really shows we are viewing the bottom of Italy's boot, which is NOT at all obvious from just the numbers. This is using gshhs_f.b, the full resolution data ... now all I need is a way to fill the 'water' with a soft blue, and the land with a soft brown ...

The source of this 'messy' WIN32 application is contained in this ZIP, and a WIN32 runtime module in this ZIP ... see downloads below for date, size and MD5 context string ...

Geoff McLane
Thursday, February 28, 2008 - February 04, 2008.



As ALWAYS, take due care with downloading and running executables from the web!

Link Date Size Description MD5 22/03/2008 506,865 Source of gshhs_win.exe - need zlib for .gz reading. 1e57ca598d93a86f3fc679a60f450155 22/03/2008 65,018 WIN32 runtime of gshhs_win.exe (see below) 76b1788e95476e69bbc4c569cbf79531
Older Version - not recommended 2008/02/28 352,052 Source of gshhs_win.exe c1247a902713981252549ed52b4acd0f 2008/02/28 24,053 WIN32 runtime of gshhs_win.exe b358e058564b0031af8e8f5a87308e5b
BglView - quite old, messy application - not recommended 2008/02/28 137,235,188 Source of BglView2 2e7d2464dca91deb41cc54ab018ae46e 2008/02/28 428,612 WIN32 runtime BglView2.exe c029716043903abc6eda5535ceeee39b

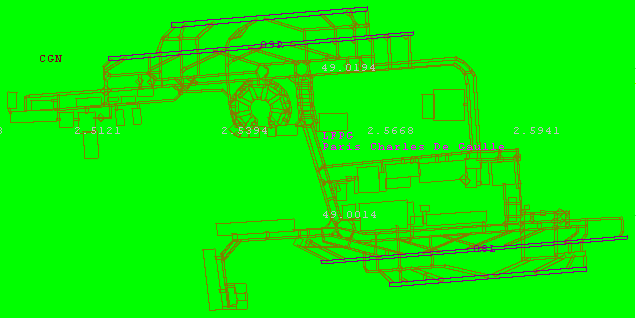

Update: 20080315: Although this is primarily an application to 'view' GSHHS data, I have enhanced to include some more FlightGear (FG)  dataset information. This included linking into static zlib, to directly decompress the FG .gz data file. This is a 'green' view of Charles De Gaulle airport, Paris, France taken from a recent apt.dat.gz, which is in fact the same data used in X-Plane ...

Image of LFPG airport, Charles Degaulle, from FlightGear data.

If you 'know' the airport, you can even sort of 'see' the round building ;=) All the FG dataset handling code in the application gshhs_win.exe can be turned OFF by adding #define NO_ADD_FG_DATA in say gshhs_vers.h. Then all the FG options and actions are completely removed, and only GSHHS data is loaded and displayed ...

Update: 20080321: And since this area was the recent subject of a discussion on FlightGear development board, could not resist adding another combination of GSHHS data (the black island outlines), and FG data (within the green) for Hong Kong International airport (VHHH) -

Image of HK ap, using both FG and GSHHS data

It will be interesting to compare this with both vmap0 and/or SRTM data, when I get around to it ...


The next page, gshhs-02.htm, are some more experiments using this GSHHS database as the 'Default' landmass outline in TerraGear...
